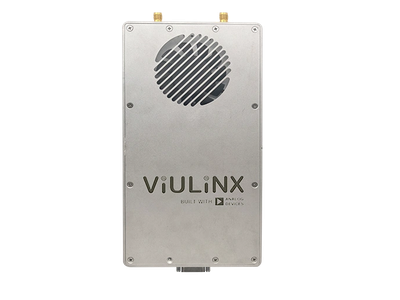

ViuMesh Triple

---

Frequency                                                                                    600MHz+1.4GHz+2.4GHz

Transmission power                                                                                                  10W*2

Max. throughput                                                          Max. throughput 47Mbps@20MHz

Max. Mesh node                                                                                                               64

Input voltage                                                                                                   DC 24V~27V

Dimension                                                                                          204.4×109.3×31.0mm

Weight                                                                                                                            735g

Interfaces                                                                           SMA-K, 100M ETH, RS232, TTL

Working temperature                                                                                      -40°C~+55°C

Communicate distance                                                                                              200km
