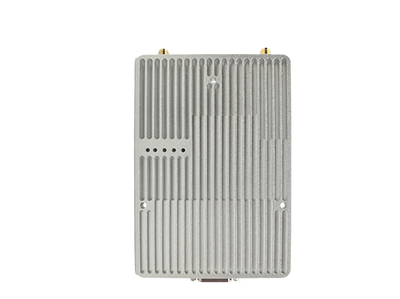

ViuMesh Pro 02H

---

Frequency                                                                                                    1350~1450MHz

Transmission power                                                                                                    1W*2

Max. throughput                                                          Max. throughput 47Mbps@20MHz

Max. Mesh node                                                                                                               64

Input voltage                                                                                        DC 18V~27V@1.5A

Dimension                                                                                           135.15×84.30×20mm

Weight                                                                                                                       295±5g

Interfaces                                                                                                 SMA-K, J30J-25p

Working temperature                                                                                      -40°C~+55°C

Communicate distance                                                                                                20km
