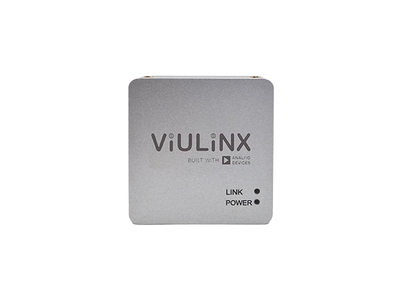

ViuMesh Pro 01H

---

Frequency                                                                                                                  1.4GHz

Transmission power                                                                                                  0.5W*2

Throughput                                                   2Mbps~8Mbps (downlink); 600kbps (uplink)

Input voltage                                                                 DC 12V~30V@1A recommend 12V

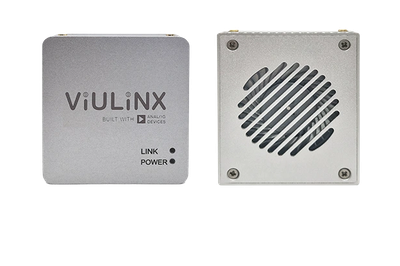

Dimension                                                                 57.5×55.0×16.0mm (passive cooling)

                                                                                       57.7×49.9×16.8mm (active cooling)

Weight                                                              91g (passive cooling); 70g (active cooling)

Working temperature                                                                                            -30~+55°C

Interfaces                                                                        MMCX, PWR, ETH*, Serial, S.BUS

Communicate distance                                                                                                 10km
