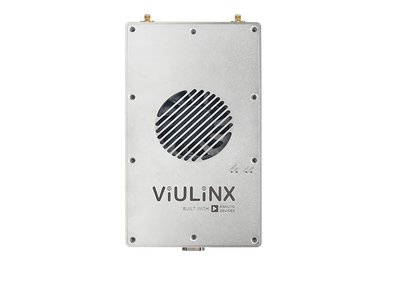

ViuMesh Pro 20H

---

Frequency                                                                                                                 1.4GHz

Transmission power                                                                                                  10W*2

Max. throughput                                                          Max. throughput 47Mbps@20MHz

Max. Mesh node                                                                                                               64

Input voltage                                                                        DC 21V~27V, typical 24V@5A

Dimension                                                                                          183.5×109.3×29.5mm

Weight                                                                                                                            680g

Interfaces                                                                                                  SMA-K, J30J-25p

Working temperature                                                                                      -30°C~+55°C

Communicate distance                                                                                              200km
