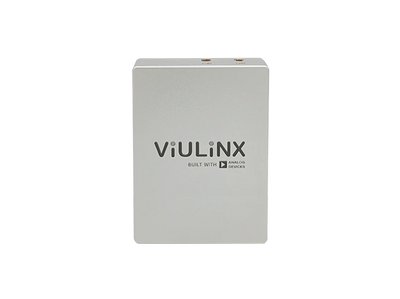

ViuMesh Lite

---

Frequency                                                                                                    1350~1450MHz

Transmission power                                                                                                 0.5W*2

Max. throughput                                                          Max. throughput 47Mbps@20MHz

Max. Mesh node                                                                                                               64

Input voltage                                                                                              DC 7V~30V@1A

Dimension                                                                                                    57.5×55×16mm

Weight                                                                                                                              91g

Interfaces                                                                                  MMCX, ETE, S.BUS, Serial

Working temperature                                                                                      -40°C~+55°C

Communicate distance                                                                                                10km
