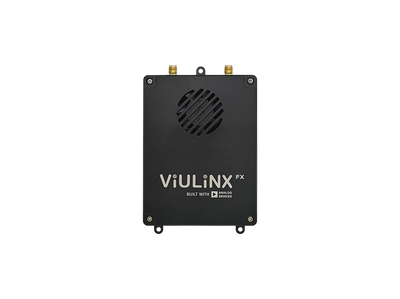

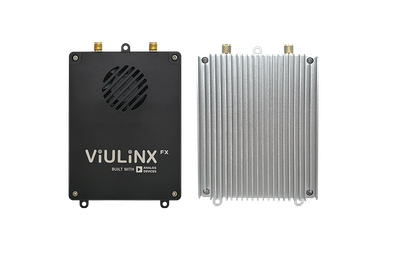

Viulinx FX 2W

---

Frequency                                                                                                                  1.4GHz

Transmission power                                                                                                  33dBm

Throughput                                                   2Mbps~8Mbps (downlink); 600kbps (uplink)

Input voltage                                                                                                      DC 12V~26V

Dimension                                                                    92.5×70.3×25.0mm (active cooling)

                                                                                   92.5×70.3×30.0mm (passive cooling)

Weight                                                         198g (active cooling); 240g (passive cooling)

Working temperature                                                              -40°C~60°C (active cooling)

                                                                                               -40°C~55°C (passive cooling)

Interfaces                                                                    Ethernet, Serial, S.BUS, PPM, PWR

Communicate distance                                                                                   50km, 100km
