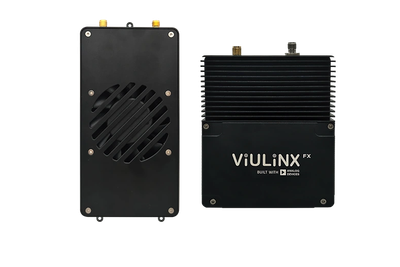

Viulinx FX 10W

---

Frequency                                                                                                                  1.4GHz

Transmission power                                                                                                  40dBm

Throughput                                                  2Mbps~8Mbps (downlink); 600kbps (uplink)

Input voltage                                                                                                     DC 12V~36V

Dimension                                                                 130.0×67.5×35.0mm (active cooling)

                                                                                   93.0×77.3×42.5mm (passive cooling)

Weight                                                         600g (active cooling); 430g (passive cooling)

Working temperature                                                              -40°C~60°C (active cooling)

                                                                                               -40°C~55°C (passive cooling)

Interfaces                                                                  Ethernet, Serial, S.BUS, PPM, Power

Communicate distance                                                                                              200km
