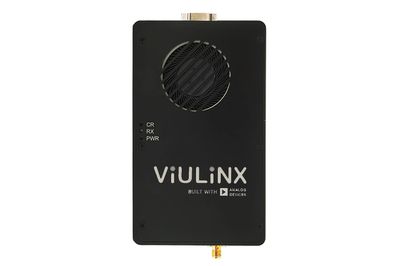

Viulinx A0920W

---

Frequency                                                                                         902~928MHz/840MHz

Transmission power                                                                                     20W (43dBm)

Throughput                                                      Max. 740kbps@1MHz, 370kbps@500kHz,

                                                                                   185kbps@250kHz, 92kbps@125kHz

Input voltage                                                                                                    DC 15V~28V

Network topology                                                                               PTP、PTMP、MESH

Dimension                                                                                               114×66.3×26.1mm

Weight                                                                                                                           318g

Working temperature                                                                                      -40°C~+85°C

Interface                                                                                                                 J30J-15P

Communicate distance                                                                                      100-200km
