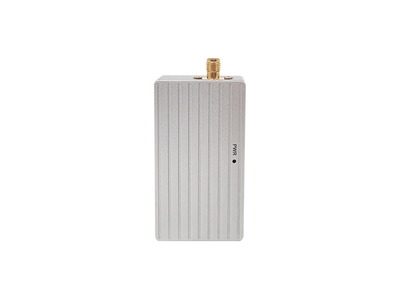

Viulinx A090W5

---

Frequency                                                                                         902~928MHz/840MHz

Transmission power                                                                                500mW (27dBm)

Throughput                                                      Max. 740kbps@1MHz, 370kbps@500kHz,

                                                                                   185kbps@250kHz, 92kbps@125kHz

Input voltage                                                                                                     DC 9V~28V

Network topology                                                                              PTP、PTMP、MESH

Dimension                                                                                             65.5×35.8×13.5mm

Weight                                                                                                                             75g

Working temperature                                                                                     -40°C~+85°C

Interface                                                                                  XT30 UART (RS232 or TTL)

Communicate distance                                                                                         10-30km
