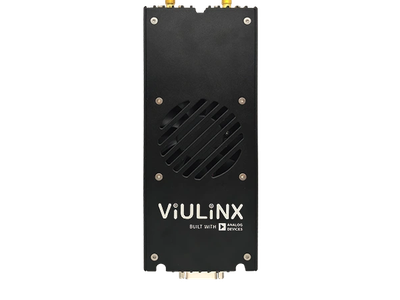

ViuMesh Pro 14H

---

Frequency                                                                                                                 1.4GHz

Transmission power                                                                                                    7W*2

Max. throughput                                                          Max. throughput 47Mbps@20MHz

Max. Mesh node                                                                                                               64

Input voltage                                                                                                    DC 12V~36V

Dimension                                                                                            150.0×62.0×30.0mm

Weight                                                                                                                            500g

Interfaces                                                                           SMA, ETH, Serial, S.BUS, PWR

Working temperature                                                                                      -40°C~+55°C

Communicate distance                                                                                              150km
