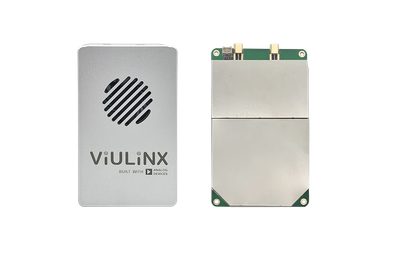

Viulinx DUO Pro-N

---

Frequency                                                                                                     2.4GHz/5.8GHz

Transmission power                                                     26dBm@2.4GHz, 24dBm@5.8GHz

Throughput                                                   2Mbps~8Mbps (downlink); 600kbps (uplink)

Input voltage                                                                                                      DC 12V~26V

Dimension                                                          75.0×45.0mm (board), 77.8×47.3×23.5mm

Weight                                                                                                        17g (board), 103g

Working temperature                                                                                            -40~+60°C

Interfaces                                                              ETH*1, TTL*2, S.BUS*2, 1PPS*1, PWR*1

Communicate distance                                                                                                 10km
